Features

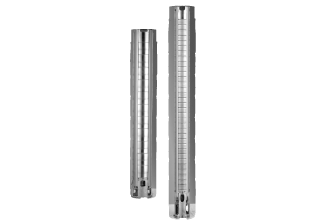

The Pearl 10PWS stainless steel submersible pumps are made of high quality 304 or 316 corrosion resistant stainless steel. Shafts are made of high strength 431 stainless steel. The pumps are designed for efficient and dependable performance, and long and trouble-free life. The pumps are light in weight and ruggedly constructed for heavy duty applications.
10" STAINLESS STEEL SUBMERSIBLE WATER PUMPS PERFORMANCE RANGE
- Recommended range from 200 - 750 gpm.
- Head up to 1794 ft.
10" STAINLESS STEEL SUBMERSIBLE WATER PUMPS APPLICATIONS
- Potable water supply from deep wells
- Agricultural-Irrigation and livestock watering
- Municipal and Industrial water supply
- Pressure boosting
- Mine dewatering
- Fountains, etc.
10" STAINLESS STEEL SUBMERSIBLE WATER PUMPS PUMPED LIQUIDS
- Clean water and any non -abrasive liquid compatible with the material components.
10" STAINLESS STEEL SUBMERSIBLE WATER PUMPS OPERATING CONDITIONS
- Max. ambient temperature (Liquid): 104° F (40° C).
10" STAINLESS STEEL SUBMERSIBLE WATER PUMPS FEATURES
- Stainless steel construction designed and built for years of trouble free operation
- Heavy duty stainless steel discharge head with built-in check valve for long life and ease of installation
- Mounting specifications are according to NEMA standards
- High quality shaft bearings providing low friction and high wear resistance
- Heavy duty stainless steel impellers & diffusers ensuring optimal performance
- Stainless steel strainer to restrict the entry of sand and other extraneous material
10" STAINLESS STEEL SUBMERSIBLE WATER PUMPS TECHNICAL DATA:
|
MODEL |
HP |
DISCH. |
MOTOR |
STAGES |
WT. LBS |
|
10PWS 650G150-D6M6 |
15 |
6" |
6" |
1 |
65 |
|
10PWS 650G250-D6M6 |
25 |
6" |
6" |
1 |
65 |
|
10PWS 650G300-D6M6 |
30 |
6" |
6" |
2 |
79 |
|
10PWS 650G400-D6M6 |
40 |
6" |
6" |
2 |
79 |
|
10PWS 650G400-D6M8 |
40 |
6" |
8" |
2 |
79 |
|
10PWS 650G500-D6M6 |
50 |
6" |
6" |
3 |
93 |
|
10PWS 650G500-D6M8 |
50 |
6" |
8" |
3 |
103 |
|
10PWS 650G500H-D6M6 |
50 |
6" |
6" |
3 |
93 |
|
10PWS 650G500H-D6M8 |
50 |
6" |
8" |
3 |
103 |
|
10PWS 650G600-D6M6 |
60 |
6" |
6" |
3 |
93 |
|
10PWS 650G600-D6M8 |
60 |
6" |
8" |
3 |
103 |
|
10PWS 650G750-D6M6 |
75 |
6" |
6" |
4 |
114 |
|
10PWS 650G750-D6M8 |
75 |
6" |
8" |
4 |
114 |
|
10PWS 650G750H-D6M6 |
75 |
6" |
6" |
4 |
115 |
|
10PWS 650G750H-D6M8 |
75 |
6" |
8" |
4 |
115 |
|
10PWS 650G1000-D6M8 |
100 |
6" |
8" |
5 |
126 |
|
10PWS 650G1000-D6M10 |
100 |
6" |
10" |
5 |
126 |
|
10PWS 650G1000H-D6M8 |
100 |
6" |
8" |
5 |
127 |
|
10PWS 650G1000H-D6M10 |
100 |
6" |
10" |
5 |
127 |
|
10PWS 650G1000HH-D6M8 |
100 |
6" |
8" |
5 |
127 |
|
10PWS 650G1000HH-D6M10 |
100 |
6" |
10" |
5 |
127 |
|
10PWS 650G1000SH-D6M8 |
100 |
6" |
8" |
6 |
137 |
|
10PWS 650G1000SH-D6M10 |
100 |
6" |
10" |
6 |
137 |
|
10PWS 650G1250-D6M8 |
125 |
6" |
8" |
6 |
137 |
|
10PWS 650G1250-D6M10 |
125 |
6" |
10" |
6 |
137 |
|
10PWS 650G1250H-D6M8 |
125 |
6" |
8" |
6 |
137 |
|
10PWS 650G1250H-D6M10 |
125 |
6" |
10" |
6 |
137 |
|
10PWS 650G1250HH-D6M8 |
125 |
6" |
8" |
7 |
147 |
|
10PWS 650G1250HH-D6M10 |
125 |
6" |
10" |
7 |
148 |
|
10PWS 650G1250SH-D6M8 |
125 |
6" |
8" |
7 |
148 |
|
10PWS 650G1250SH-D6M10 |
125 |
6" |
10" |
7 |
148 |
|
10PWS 650G1500-D6M8 |
150 |
6" |
8" |
7 |
148 |
|
10PWS 650G1500-D6M10 |
150 |
6" |
10" |
7 |
148 |
|
10PWS 650G1750-D6M10 |
175 |
6" |
10" |
8 |
185 |
|
10PWS 650G1750H-D6M10 |
175 |
6" |
10" |
9 |
195 |
|
10PWS 650G2000-D6M10 |
200 |
6" |
10" |
10 |
213 |
|
|
