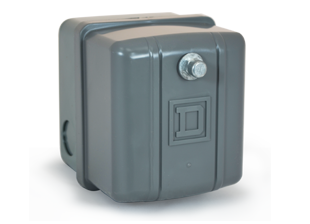

The class 9013 Type G heavy duty pressure switches are designed to control electrically driven water pumps and air compressors. Diaphragm actuated. These devices cover higher electrical ratings for directly controlling motors in pump and compressor applications. The GSG class comes with adjustable differential.
For all this pressure switches are available the pulsation plugs
FEATURES:
- Connection: ¼” Female
- Pressure range available: 20-40 psi; 30-50 psi; 40-60 psi; 50-70 psi; 60-80 psi
- Maximum allowable pressure: 220 psi
- Operating Temperature Limits: Min: -33 F Max: 257 F
- Degree of protection: NEMA 1
- Standards: UL/CSA
TECHNICAL INFORMATION
|
MODEL |
CONNECTION |
APPLICATION |
PRESSURE RANGE |
BOX QTY. |
WEIGHT [Lb] |
|
9013GSG2J20 |
¼" FEMALE |
WATER OR AIR |
20 - 40 PSI |
1 |
2.0 |
|
9013GSG2J21 |
¼" FEMALE |
WATER OR AIR |
30 - 50 PSI |
1 |
2.0 |
|
9013GSG2J24 |
¼" FEMALE |
WATER OR AIR |
40 - 60 PSI |
1 |
2.0 |
|
9013GSG2J33 |
¼" FEMALE |
WATER OR AIR |
50 - 70 PSI |
1 |
2.0 |
|
9013GSG2J25 |
¼" FEMALE |
WATER OR AIR |
60 - 80 PSI |
1 |
2.0 |
